W1209 Digital Temperature Controller Thermostat Module
High precision W1209 thermostat module with 3-digit LED display, 10A relay output, and NTC waterproof temperature probe for incubators and cooling systems.
W1209 Digital Temperature Controller Thermostat Module is an authentic, engineering-grade hardware component designed for prototyping, robotics, and academic research. Includes verified schematics, pre-tested hardware, and nationwide express shipping across Pakistan.
### W1209 Microcomputer Digital Temperature Controller Module
The **W1209** is a precision, standalone digital thermostat controller equipped with an on-board STM8 microcontroller, 3-digit high-brightness LED display, 10A switching relay, and a waterproof NTC temperature probe. It requires no programming and allows full configuration of heating, cooling, hysteresis, and alarm triggers directly via on-board tactile buttons.
#### ⚡ Technical Specifications:
- **Temperature Control Range**: -50°C to +110°C
- **Resolution**: 0.1°C (-9.9°C to 99.9°C), 1.0°C (other ranges)
- **Measurement Accuracy**: ±0.1°C
- **Refresh Rate**: 0.5 seconds
- **Input Power**: 12V DC
- **Sensor Type**: NTC (10K 0.5%) Waterproof 50cm Stainless Steel Probe
- **Output Relay Capacity**: 10A 250VAC / 20A 14VDC
- **Environmental Requirements**: -10°C to 60°C, Humidity 20%–85%
- **Programmable Parameters**: P0 (Cooling/Heating), P1 (Hysteresis), P2 (Max Limit), P3 (Min Limit), P4 (Correction), P5 (Delay Start), P6 (High Temp Alarm)
#### 🛠️ Applications:
- Egg Incubator Temperature Control & Hatchers
- Aquarium Water Heating / Chilling Regulation
- DIY Greenhouses & Refrigerator / Freezer Conversion
- Server Rack Cooling & Industrial Equipment Protection
What's Included in the Package:

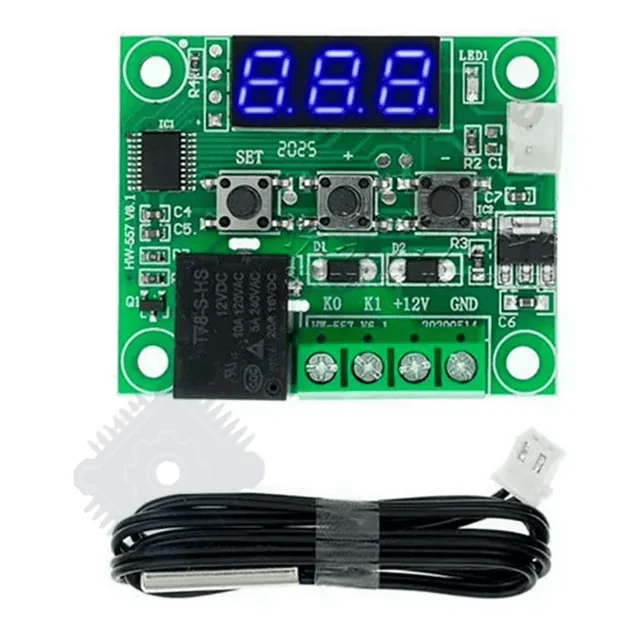

- 1x W1209 Digital Thermostat Controller Board
- 1x Waterproof 0.5m Stainless Steel NTC 10K Temperature Probe
Quick Build & Interfacing Guide:
Unbox and verify all pre-tested sensors, microcontrollers, and wiring components included in your package.
Secure mechanical brackets, servos, and modules to the main frame using the provided mounting hardware.
Interface VCC, GND, and GPIO signal lines according to the verified schematic diagram provided with the kit.
Upload the tested source code via Arduino IDE, Python, or ESP-IDF and verify live sensor readings and actuation.
