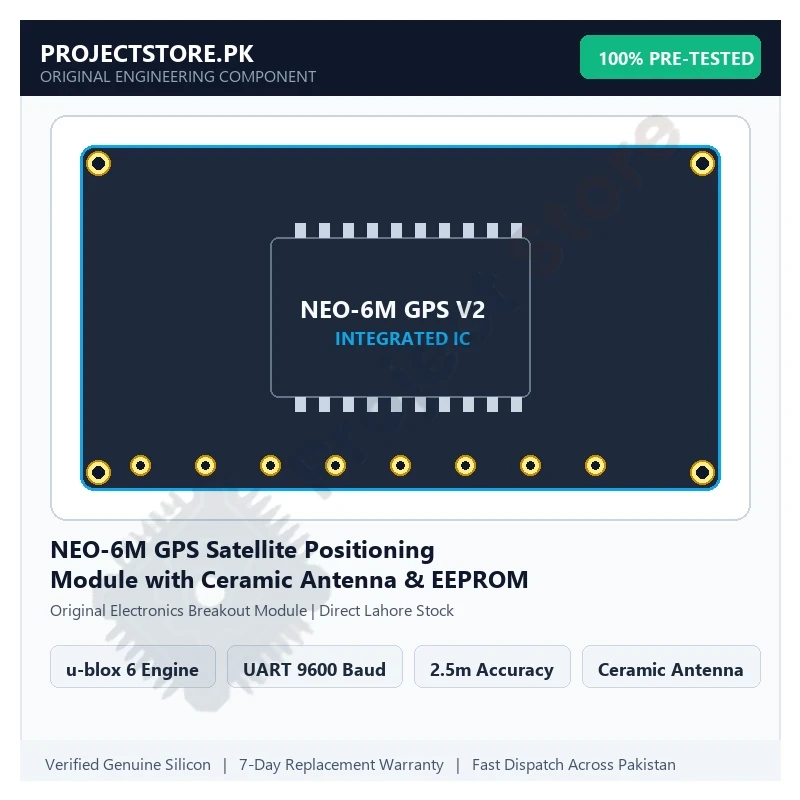

NEO-6M GPS Satellite Positioning Module with Ceramic Antenna & EEPROM
High-sensitivity standalone GPS navigation module featuring u-blox 6 positioning engine, on-board EEPROM, battery backup, and external ceramic patch antenna.
NEO-6M GPS Satellite Positioning Module with Ceramic Antenna & EEPROM is an authentic, engineering-grade hardware component designed for prototyping, robotics, and academic research. Includes verified schematics, pre-tested hardware, and nationwide express shipping across Pakistan.
The NEO-6M GPS Module is a high-performance satellite receiver designed for vehicle fleet tracking, drone autopilot navigation, and outdoor geolocation projects.
Key Engineering Features:
- u-blox 6 Positioning Engine: Tracks up to 50 satellite channels simultaneously with fast TTFF (Time-To-First-Fix).
- High-Gain Ceramic Antenna: Includes a 25mm x 25mm ceramic patch antenna with IPEX connector for superior outdoor satellite locking.
- Built-in Rechargeable Backup Battery: Retains ephemeris and almanac data during power-downs for lightning-fast warm starts.
- Onboard EEPROM: Stores custom configuration parameters (such as baud rate and update frequency) permanently.
Common Engineering Applications:
- Vehicle real-time anti-theft GPS trackers with GSM/GPRS alerts
- Autonomous drone return-to-home waypoint navigation
- Geocaching and outdoor handheld hiking trackers
- Precision satellite NTP clock synchronization (via 1PPS pin)
What's Included in the Package:
- 1x GY-NEO6MV2 GPS Receiver Board
- 1x High-Gain Ceramic Patch Antenna with IPEX Coaxial Lead
Quick Build & Interfacing Guide:
Unbox and verify all pre-tested sensors, microcontrollers, and wiring components included in your package.
Secure mechanical brackets, servos, and modules to the main frame using the provided mounting hardware.
Interface VCC, GND, and GPIO signal lines according to the verified schematic diagram provided with the kit.
Upload the tested source code via Arduino IDE, Python, or ESP-IDF and verify live sensor readings and actuation.
Need a Custom 3D Printed Casing or Multilayer PCB?
Get custom snap-fit enclosures and robotics parts printed via our custom 3D printing service in Lahore & Pakistan, or order industrial double-sided circuit boards through our custom PCB fabrication service with nationwide delivery.
